4. Electrical (G4674224)

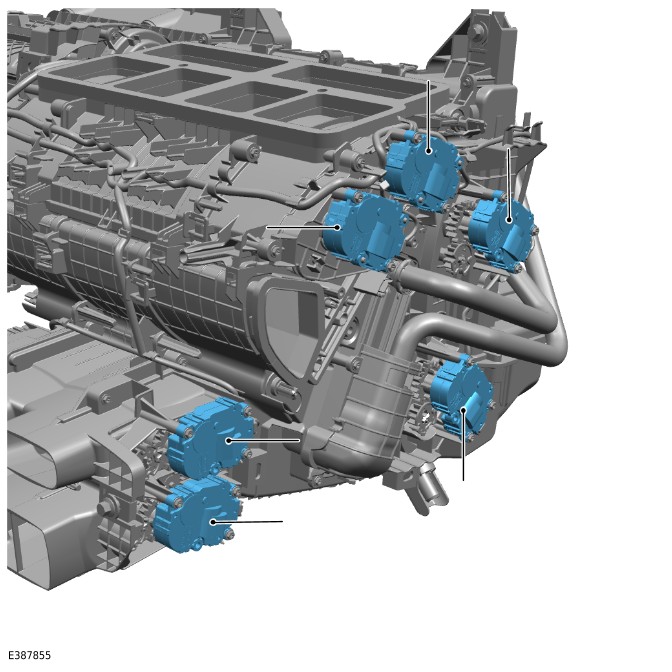

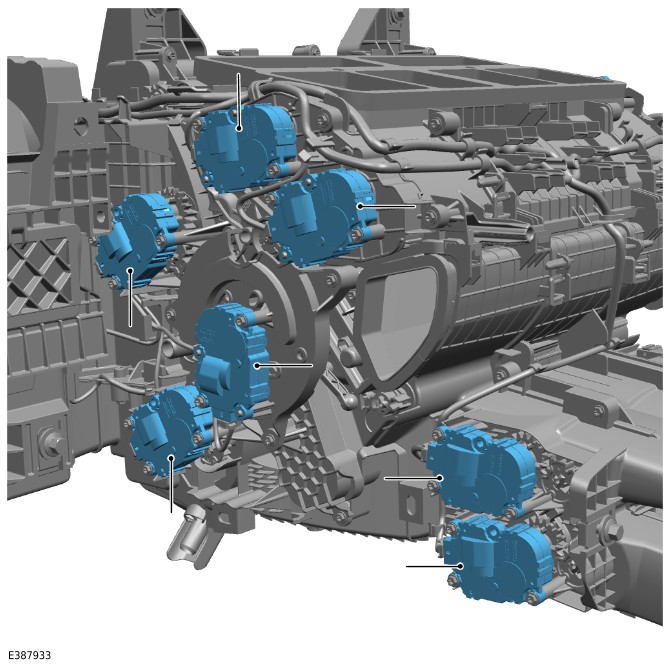

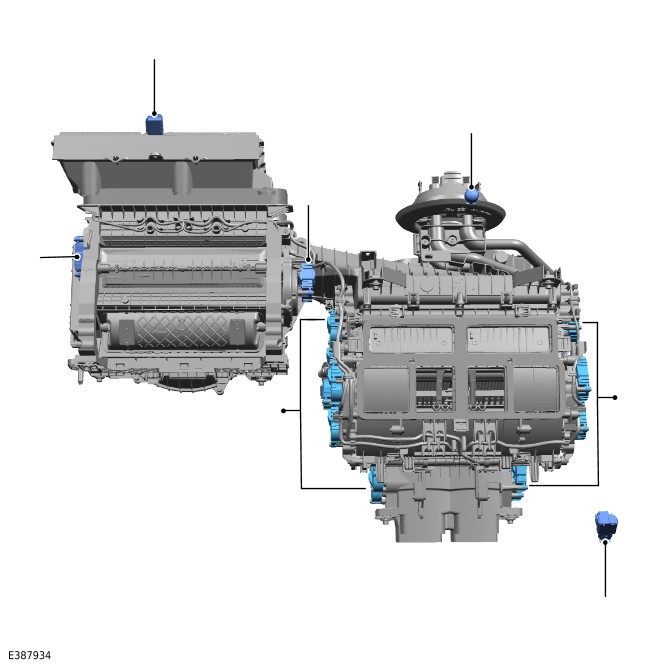

HVAC Control Module (HVAC) Left - Right Motors and Front Climate Control Assembly.

The following graphics apply to: New Range Rover (L460) New Range Rover Sport (L461). Select the Hotspot Graphic for - Component Name and Location.

Front Left Face Distribution Motor

Front Left Temperature Blend Motor

Front Left Feet Distribution Motor

Rear Left Feet Distribution Motor

Rear Left Face Distribution Motor

Rear Left Temperature Blend Motor

Front Right Temperature Blend Motor

Front Right Feet Distribution Motor

Front Right Face Distribution Motor

Demist Distribution Motor

Rear Right Temperature Blend Motor

Rear Right Feet Distribution Motor

Rear Right Face Distribution Motor

Pollution Detection Sensor

Fresh Air Distribution Motor

Recirculation Motor

Front Sunload Sensor

Front HVAC Control Module (HVAC) Left Motors

Front HVAC Right Motors

In-Vehicle Temperature Sensor

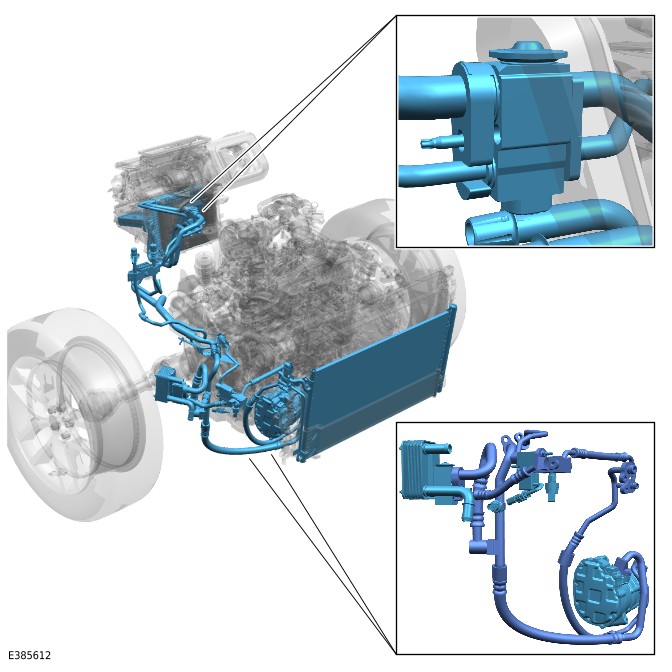

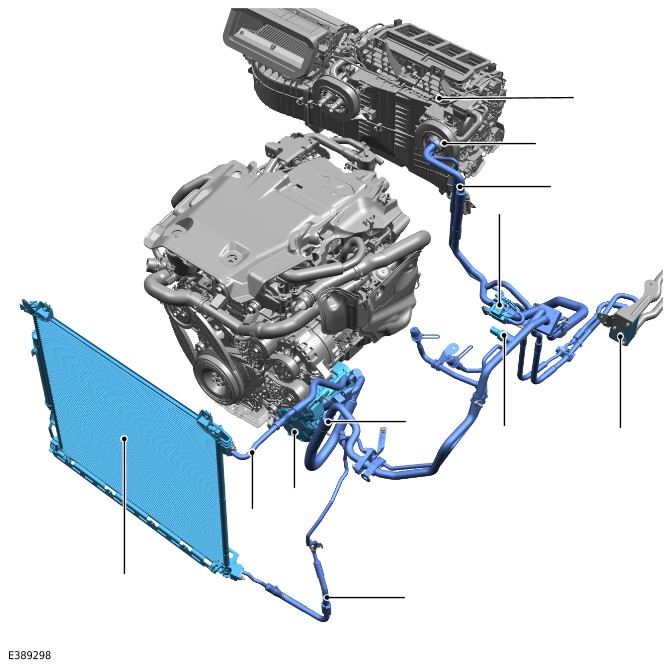

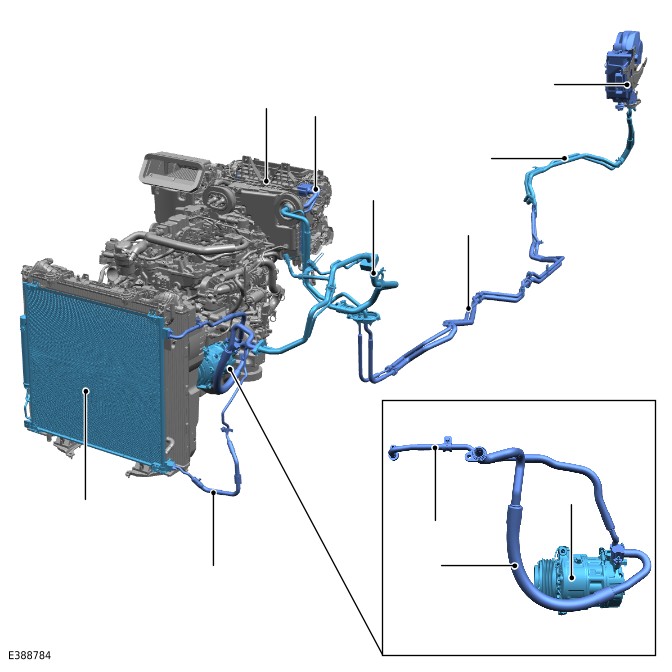

Air Conditioning System.

The following graphic applies to: Discovery Sport (L550) New Range Rover Evoque (L551) Jaguar E-PACE (X540) with Ingenium AJ20 / AJ21 engine installed. Select the Hotspot Graphic for - Component Name and Location.

Air Conditioning Compressor

Thermostatic Expansion Valve (TXV)

Air Conditioning Pressure Sensor

Evaporator

Intermediate Pipe to TXV

Air Conditioning Compressor Inlet Pipe

Air Conditioning Compressor Outlet Pipe

Air Conditioning Pipe - Condenser to Intermediate Pipe

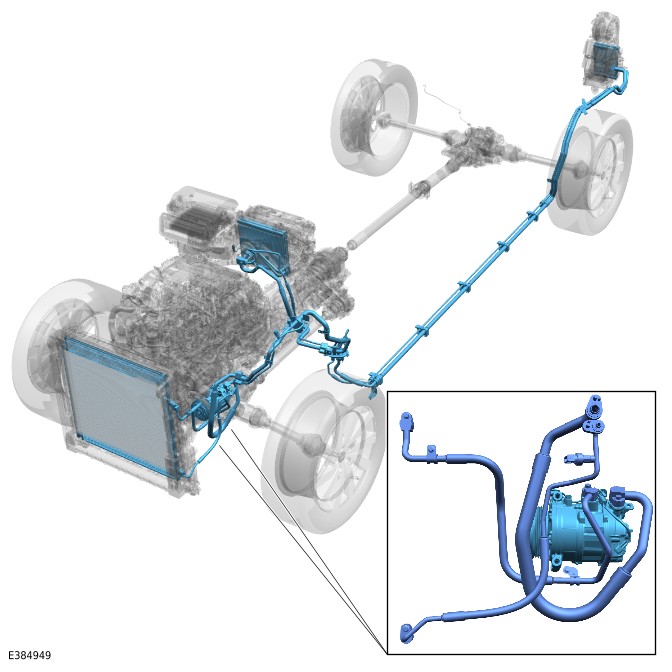

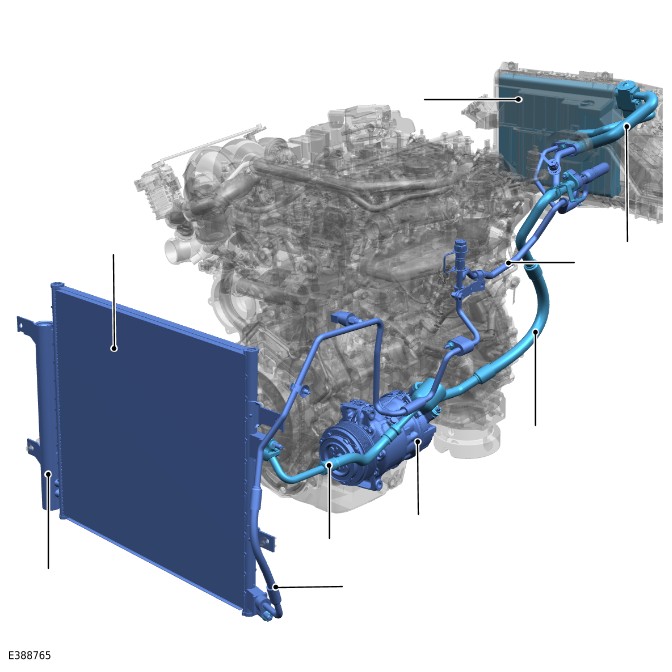

Air Conditioning System.

The following graphic applies to: New Range Rover (L460) New Range Rover Sport (L461) Defender (L663) Range Rover Velar (L560) Discovery (L462) Range Rover (L405) Range Rover Sport (L494) Jaguar F-PACE (X761) with Ingenium I6 Petrol / Diesel engine installed.

Also applies to Defender (L663) Range Rover Velar (L560) Range Rover (L405) Range Rover Sport (L494) Jaguar F-PACE (X761) XE (X760) with V8 S/C engine installed.

Also applies to: Discovery (L462) Range Rover Velar (L560) Range Rover (L405) Range Rover Sport (L494) Jaguar F-PACE (X761) XE (X760) XF (X260) with V6 S/C engine installed.

Also applies to: Discovery (L462) Range Rover Velar (L560) Range Rover (L405) Range Rover Sport (L494) Jaguar F-PACE (X761) XF (X260) with TDV6 engine installed.

Select the Hotspot Graphic for - Component Name and Location.

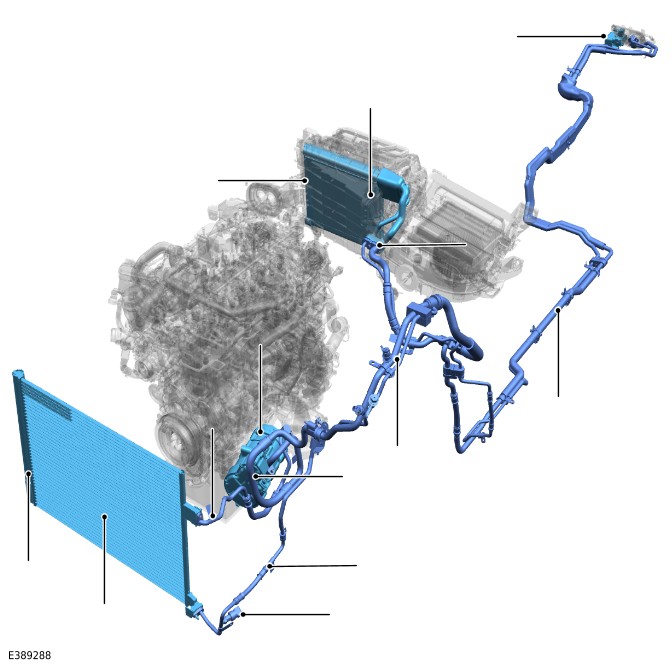

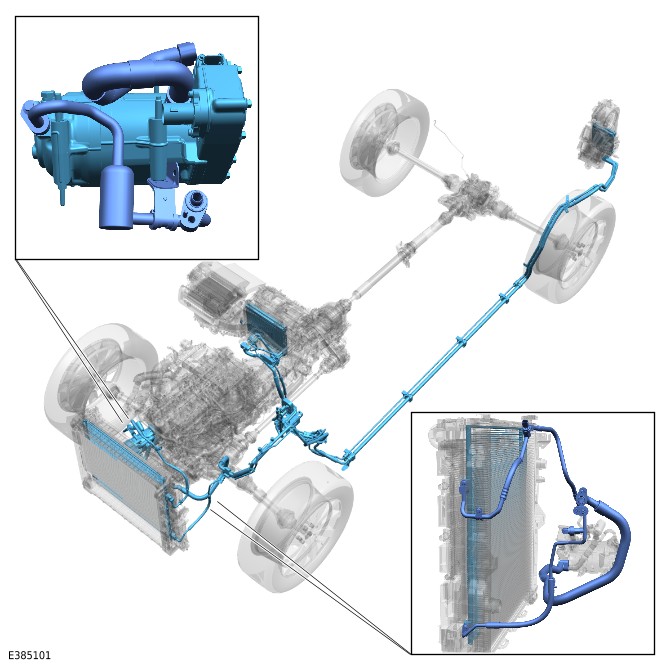

Air Conditioning System.

The following graphic applies to: New Range Rover (L460) New Range Rover Sport (L461) with Ingenium I6 Petrol Plug-in Hybrid Electric Vehicle (PHEV) engine installed. Select the Hotspot Graphic for - Component Name and Location.

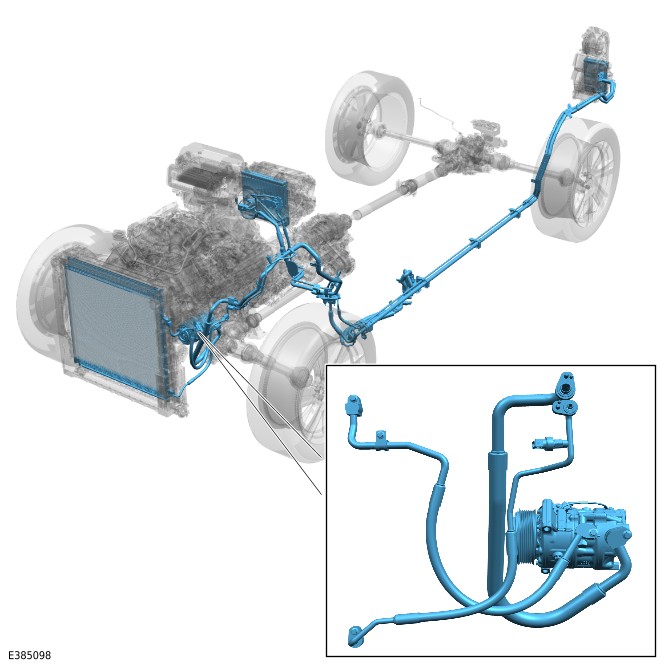

Air Conditioning System.

The following graphic applies to: New Range Rover (L460) New Range Rover Sport (L461) Defender (L663) with V8 T/C 4.4 engine installed. Select the Hotspot Graphic for - Component Name and Location.

Air Conditioning System.

The following graphic applies to: Discovery Sport (L550) New Range Rover Evoque (L551) Jaguar E-PACE (X540) with Ingenium I3 1.5L Petrol PHEV engine installed. Select the Hotspot Graphic for - Component Name and Location.

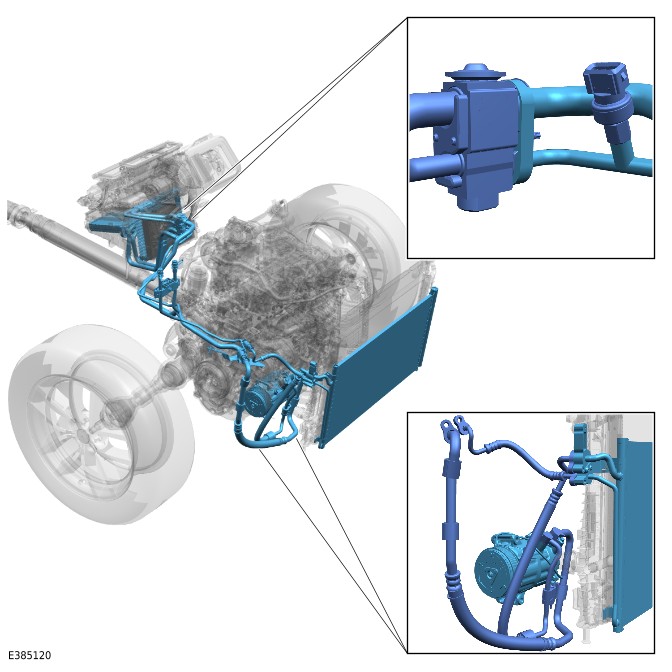

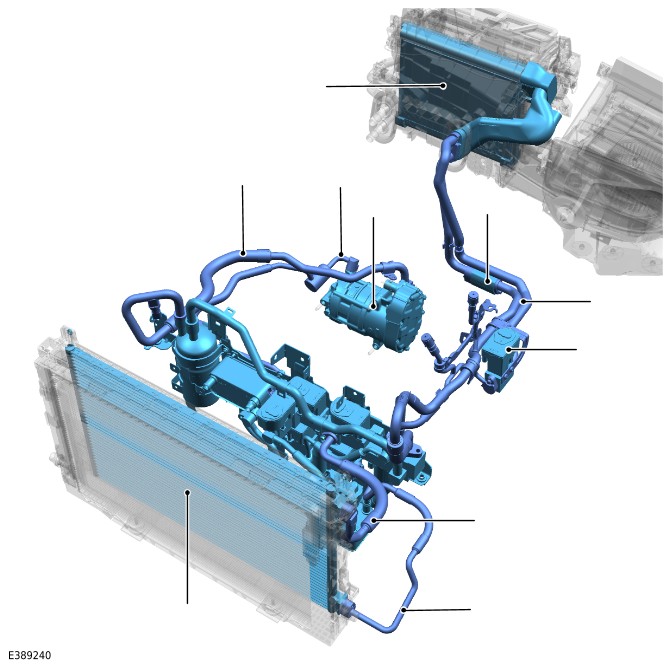

Air Conditioning System.

The following graphic applies to: Discovery Sport (L550) New Range Rover Evoque (L551) Jaguar E-PACE (X540) with Ingenium I3 1.5L Petrol Mild Hybrid Electric Vehicle (MHEV) engine installed. Select the Hotspot Graphic for - Component Name and Location.

Evaporator

Thermostatic Expansion Valve (TXV)

Air Conditioning Pressure Sensor

Evaporator Pipe Assembly

Air Conditioning Pipe - Condenser to Intermediate Pipe

Air Conditioning Condenser

Air Conditioning Compressor Inlet Pipe

Air Conditioning Compressor Outlet Pipe

Air Conditioning Compressor

Air Conditioning System.

The following graphic applies to: Defender (L663) Discovery (L462) Range Rover (L405) Range Rover Sport (L494) Range Rover Velar (L560) Jaguar F-PACE (X761) XE (X760) XF (X260) With Ingenium D4 and P4 engine installed. Also Jaguar XE (X760) with Ingenium P3 engine installed. Select the Hotspot Graphic for - Component Name and Location.

Air Conditioning System.

The following graphic applies to: Defender (L663) with Ingenium P4 PHEV engine installed. Select the Hotspot Graphic for - Component Name and Location.

Air Conditioning System.

The following graphic applies to: Range Rover Velar (L560) Jaguar F-PACE (X761) Range Rover (L405) Range Rover Sport (L494) with Ingenium I4 Petrol PHEV engine installed. Select the Hotspot Graphic for - Component Name and Location.

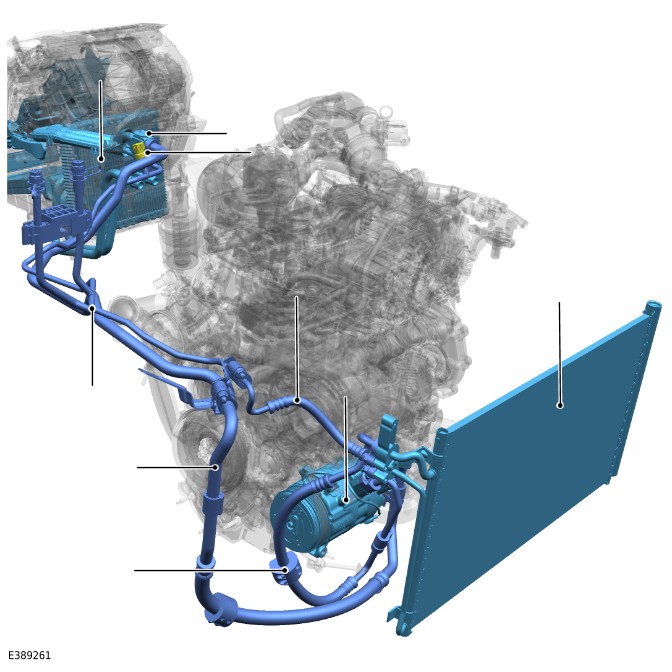

Air Conditioning System.

The following graphic applies to: Jaguar F-TYPE (X152) all engine variants. Select the Hotspot Graphic for - Component Name and Location.

Evaporator

Thermostatic Expansion Valve (TXV)

Air Conditioning Intermediate Pipe To TXV

Air Conditioning Compressor Inlet Pipe

Air Conditioning Compressor

Air Conditioning Compressor Outlet Pipe

Air Conditioning Pipe - Condenser to Intermediate Pipe

Desiccant Bag

Evaporator

Air Conditioning System.

The following graphic applies to: Jaguar I-PACE (X590). Select the Hotspot Graphic for - Component Name and Location.

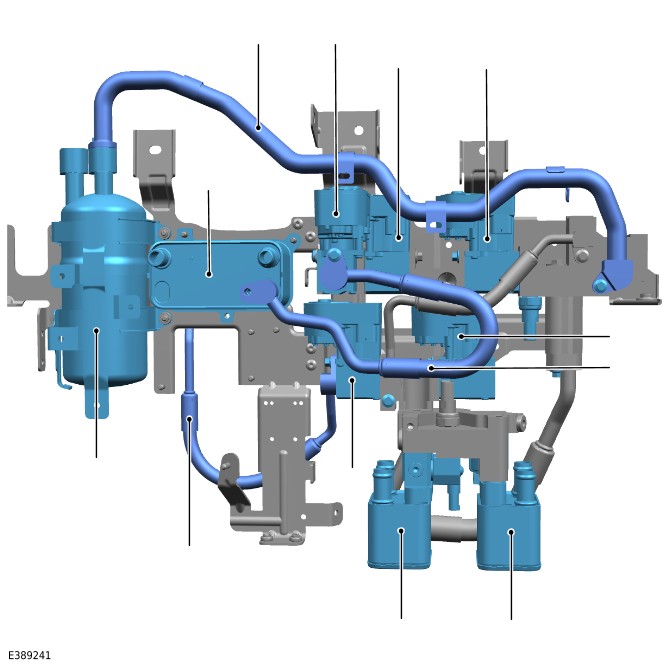

Air Conditioning System, Valve Block Mounting Bracket Assembly.

The following graphic applies to: Jaguar I-PACE (X590). Select the Hotspot Graphic for - Component Name and Location.

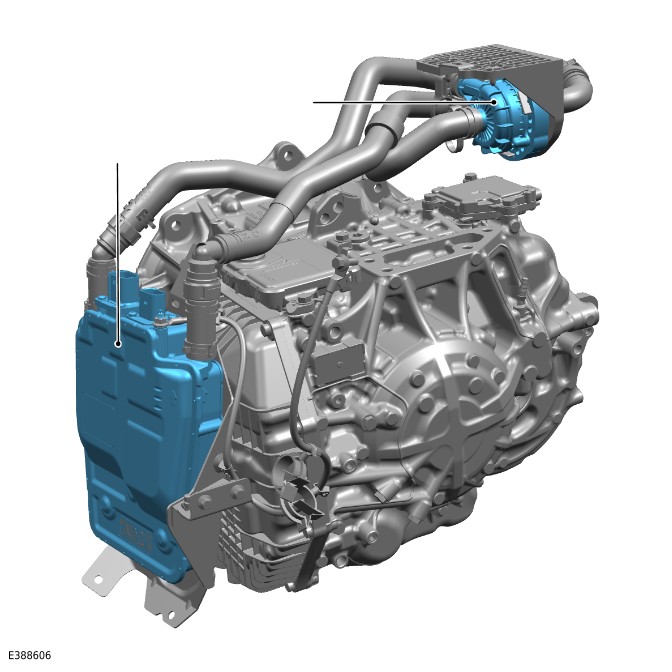

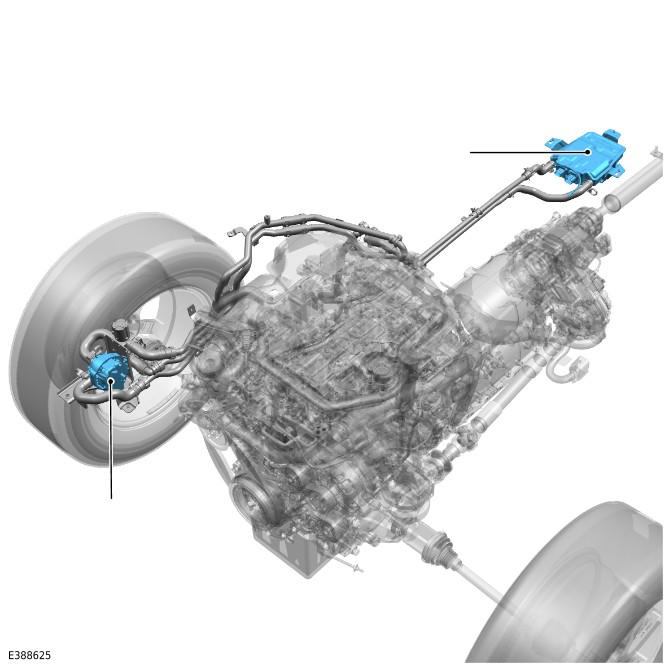

High Voltage Coolant Heater.

High Voltage Heater Pump

High Voltage Coolant Heater

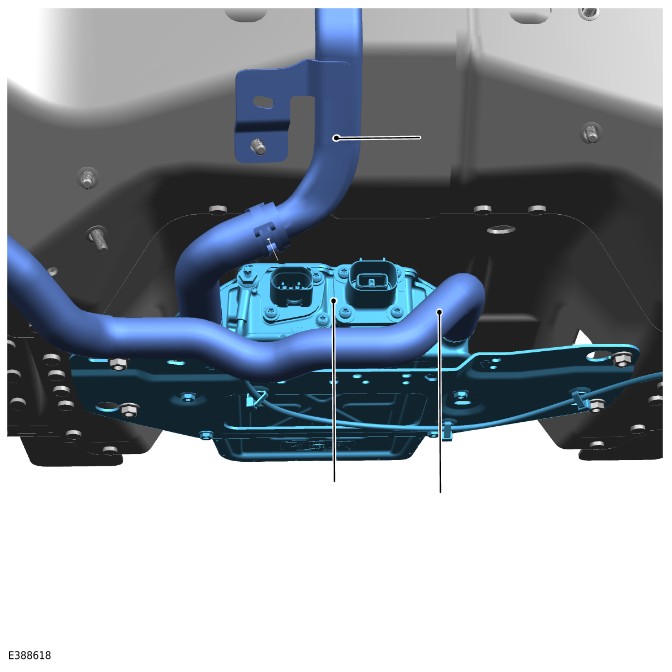

High Voltage Coolant Heater.

The following graphic applies to: Defender (L663) Range Rover (L405) Range Rover Sport (L494) with Ingenium I4. Petrol PHEV engine installed. Select the Hotspot Graphic for - Component Name and Location.

High Voltage Heater Pump

High Voltage Coolant Heater

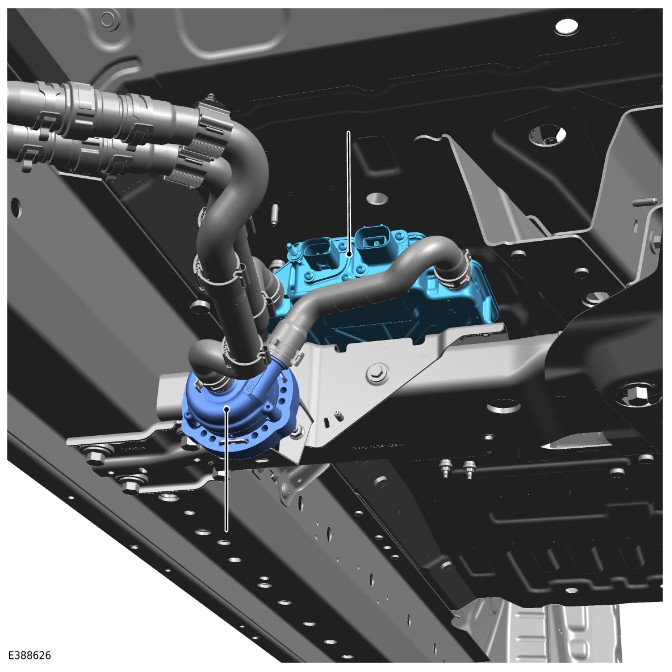

High Voltage Coolant Heater.

The following graphic applies to: Range Rover Velar (L560) Jaguar F-PACE (X761) with Ingenium I4. Petrol PHEV engine installed. Select the Hotspot Graphic for - Component Name and Location.

High Voltage Coolant Heater

High Voltage Heater Pump

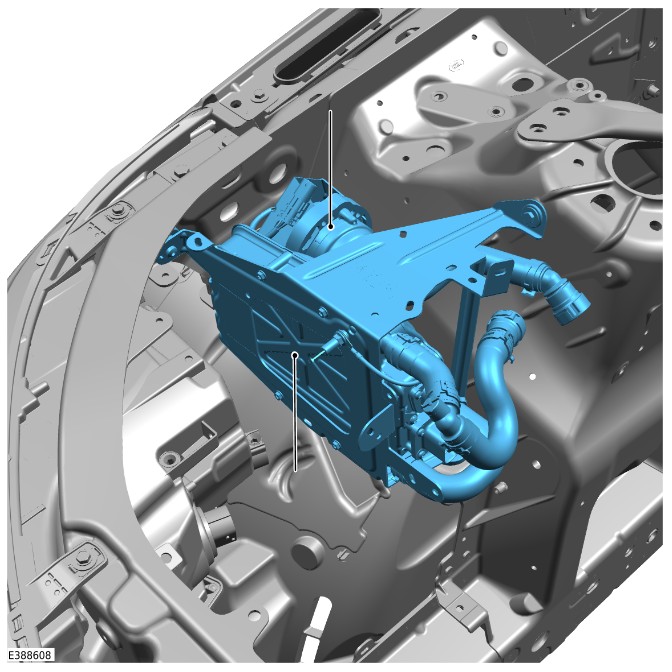

High Voltage Coolant Heater.

The following graphic applies to: New Range Rover (L460) New Range Rover Sport (L461) with Ingenium I6. Petrol PHEV engine installed. Select the Hotspot Graphic for - Component Name and Location.

High Voltage Coolant Heater

High Voltage Heater Pump

High Voltage Coolant Heater.

The following graphic applies to: Jaguar I-PACE (X590). Select the Hotspot Graphic for - Component Name and Location.

High Voltage Coolant Heater Outlet Hose

High Voltage Coolant Heater

High Voltage Coolant Heater Inlet Hose
